Product Description

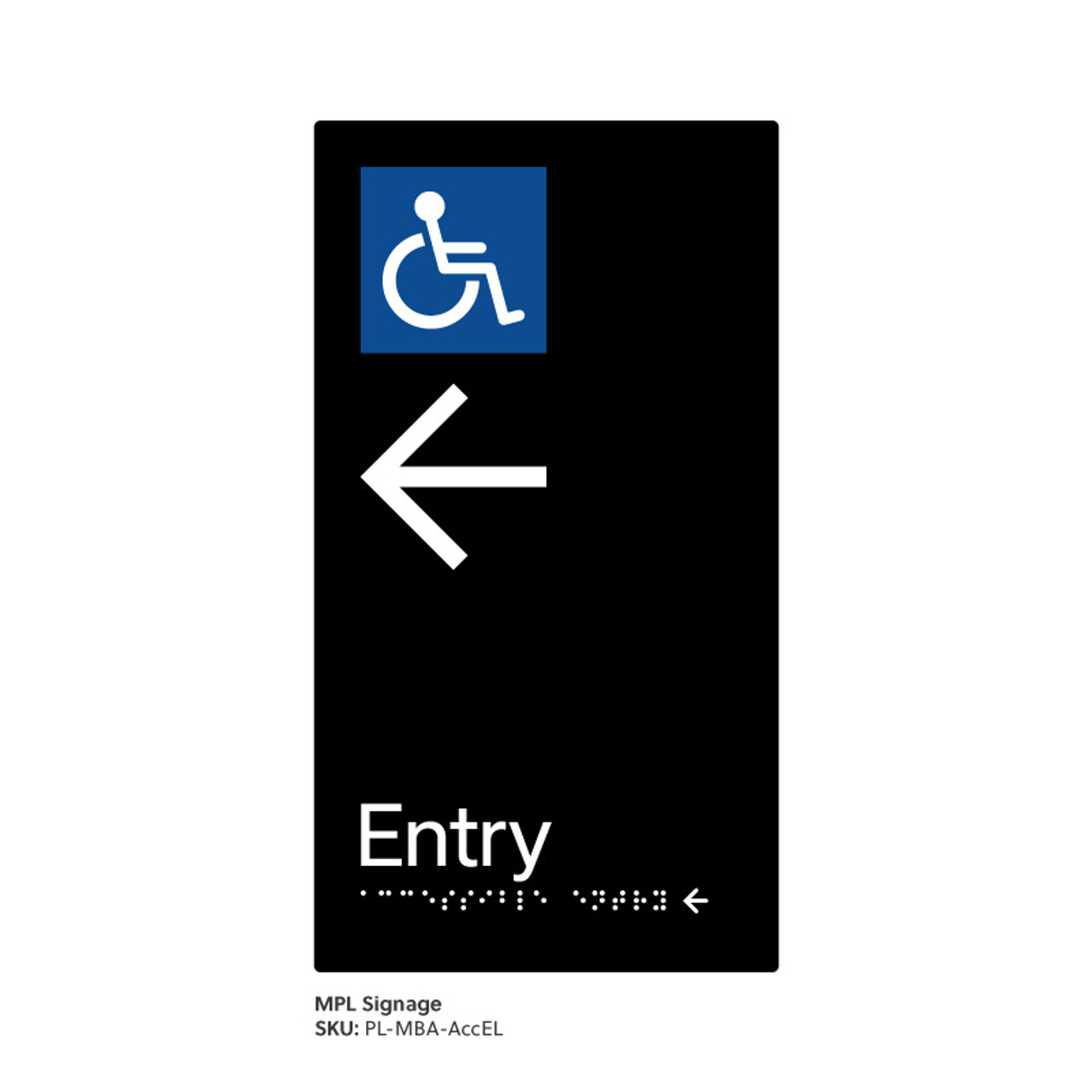

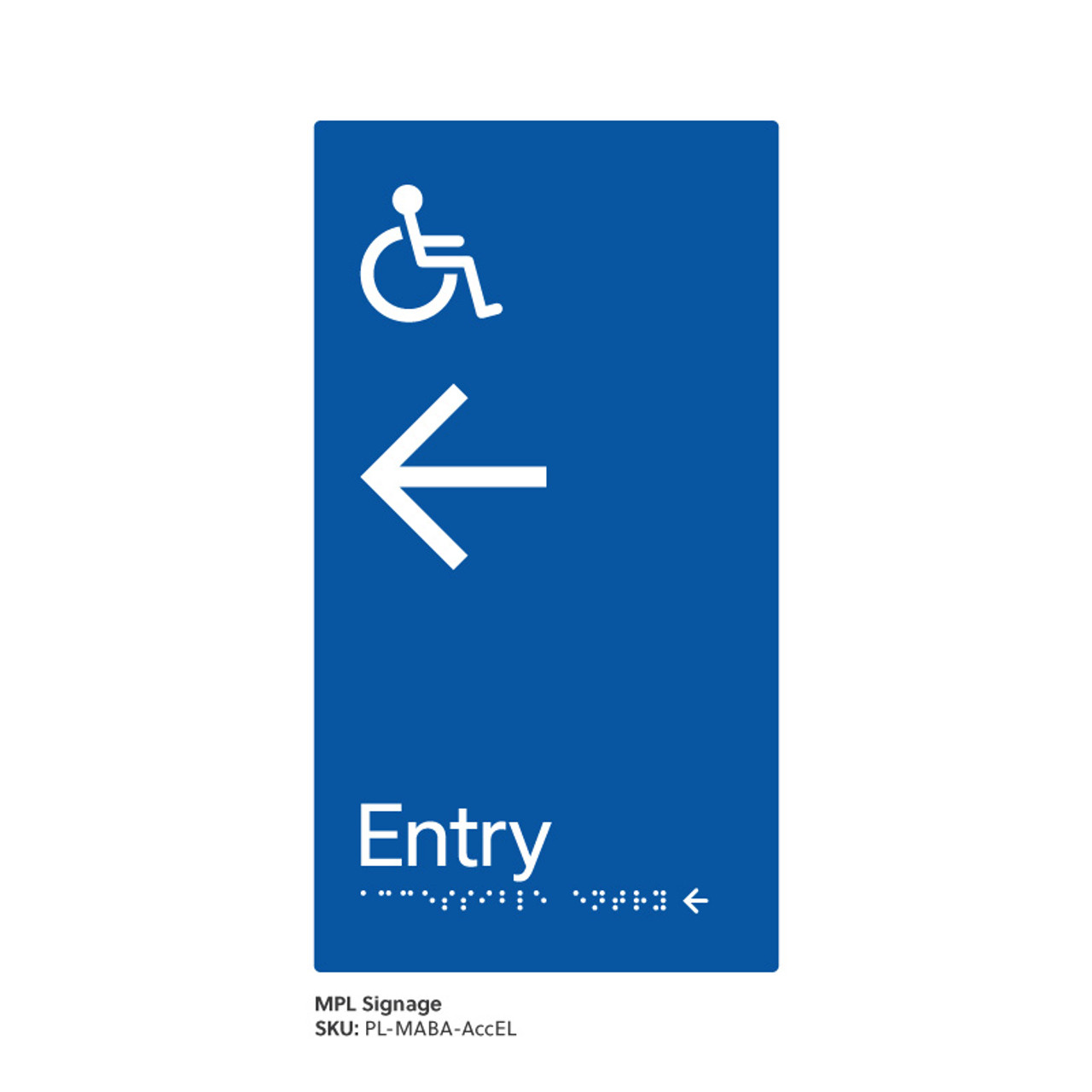

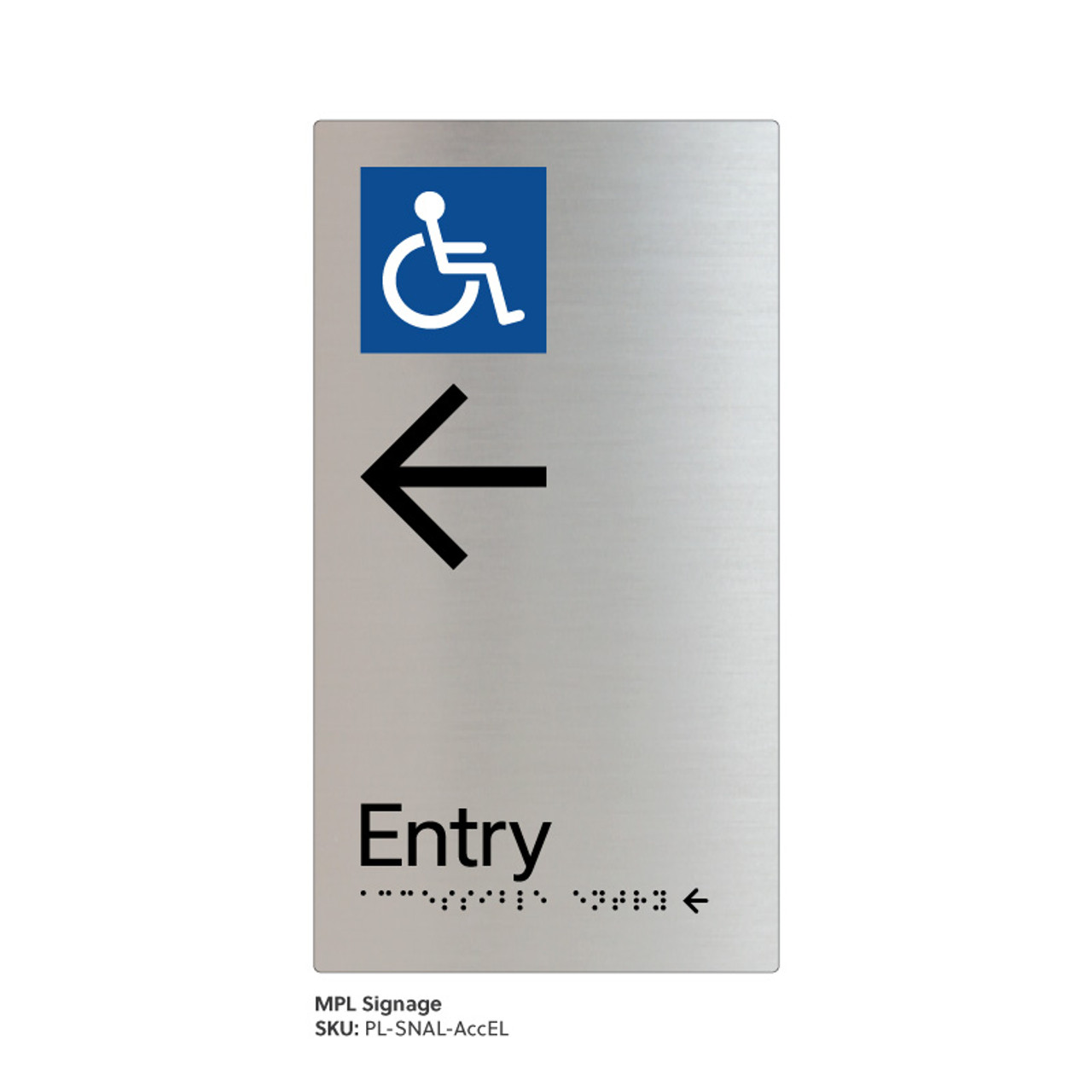

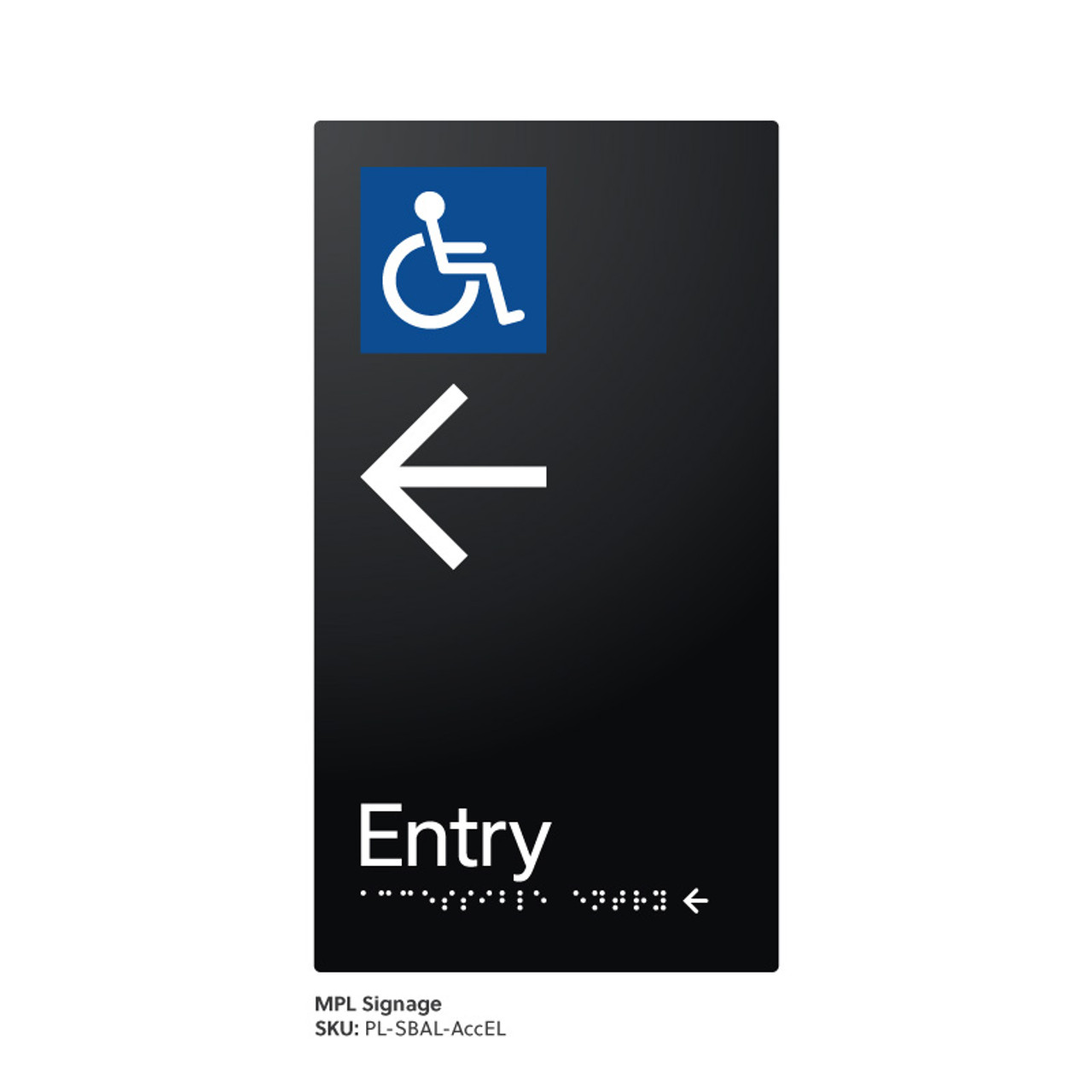

Accessible Entry Left Arrow Braille & Tactile Sign - Pillar Range
Tactile braille signs are a required part of all Australian buildings that have public accessibility access, whether it's a shopping centre or a high rise office complex! The accessible entry sign is used to show the location of an accessible entry to a building, generally via a ramp or wheelchair lift. This version is a directional version of the standard accessible entry sign, which includes a left-pointing arrow.
The pillar range of braille signs offer a different aesthetic to the classic design normally seen on off-the-shelf braille signs. The tall panel allows for a clean, modern look no matter how many or how few symbols are required, and will be appealing in a wide range of spaces.
All of our signage is 100% Australian owned and Australian made, manufactured right here in our factory in Moorabbin, Victoria.
Translation of Braille:
Accessible Entry (Left Arrow)
Icons:
Accessibility Icon, Left Arrow
Size:
150mm x 275mm
Fixing Methodology:
This sign comes with double sided VHB tape pre-applied to the rear for easy install
Material Options:
3mm matte black acrylic with tactile braille, text and iconography
3mm matte accessible blue acrylic with tactile braille, text and iconography
3mm matte silver acrylic with tactile braille, text and iconography
3mm matte white acrylic with tactile braille, text and iconography
1.6mm satin black anodised aluminium with tactile braille, text and iconography
1.6mm satin natural anodised aluminium with tactile braille, text and iconography
1.6mm matte brushed stainless steel with tactile braille, text and iconography (available upon request)
If you would like to request this sign in an alternative colour or material, please contact us today and we will organise one for you.
-------------------------------------------------------------------------------------
Installation Information:
The installation of the sign must be between 1200mm and 1600mm above the floor or ground.
If the sign has a single line of characters the tactile characters must be between 1250mm and 1350mm above the floor or ground.
The sign must be located on the wall on the same side as the door handle, and the leading edge of the sign should be located between 50mm and 300mm from the architrave.
If there is insufficient space on the door handle side of the door the sign may be installed on the opposite side.
If it is not possible to install the sign on either side of the door the sign may be installed on the door itself.
Downloads:
Specifications and Trade Pricelist for specifiers, architects, builders and designers - click here
